Seals, Sweeps, and Wipes
Part# VM-32
Length: 36”
VM-32 Polycarbonate Clear Dam Strip for use under Elite Series Swing Doors and Barn Series Sliding Doors.
VM-32 Polycarbonate Clear Dam Strip for use under Elite Series Swing Doors and Barn Series Sliding Doors.
VM-32 Polycarbonate Clear Dam Strip for use under Elite Series Swing Doors and Barn Series Sliding Doors.
Part# VM-11
Length: 72”
Flexible circular shaped vinyl seal for frameless swing doors. Reduces water leakage.
Part# VM-12
Length: 36”
It fits our Crystal, Euro, and Euro Lux Swing doors. Polycarbonate strike seal with vinyl sweep that fits onto the bottom of frameless swing doors. Fits 3/16” and 1/4” Glass.
Part# VM-40
Length: 36”
It fits our Elite doors. Bottom door wipe with drip rail reduces water leakage and assists in deflecting water back into the shower enclosure. Fits 3/8” glass. Available in clear or black colors.
Part# VM-42T
Seal Length: 96”
NOTE: This product is clear with a red removable adhesive tape protector that is peeled off upon installation.
Part# VM-43
Length: 96”
Double fin seal allows for an optional adjustment of fin length during installation. Seal is applied on swinging door units.
NOTE: Due to the length of this product, premium shipping is applied.
NOTE: This product requires Adhesive Tape in order to attach. For Adhesive Tape please Click Here.
Part# VM-2
Length: 40”
Vinyl sweep for the bottom of swinging shower doors. Seals and reduces water leakage. Used for Premier 1000/9000 Series.
Part# VM-49
Length: 78”
Vinyl bumper is placed along the edge of the glass to reduce water leakage and to protect glass.
Part# VM-50
Length:78”
Ridged polycarbonate U-channel with a 90° vinyl sweep that can be applied to a sliding glass door or fixed panel to reduce leakage. Used for Barn-Style 3/8” Glass.
Roll Length: 36’
Hi-Bonding tape used to adhere vinyl and polycarbonate seals and sweeps to glass.
Part# VM-3
PLEASE NOTE: QUANTITY IS PER FOOT. MAX FOOTAGE PER ORDER IS 25ft
Stall header vinyl is used to glaze both sides of a stationary panel into stall headers and stall curbs.
Part# VM-4
PLEASE NOTE: QUANTITY IS PER FOOT. MAX FOOTAGE PER ORDER IS 25ft
Wall channel vinyl is used to glaze both sides of a stationary panel into vertical posts.
Towel Bar and Acrylic Sets
Part# 816
Towel Bar pack includes 2 towel bars per order for framed Premier sliding doors.
For a custom length please select "Custom Length" in the drop down menu, then click add to cart to enter the custom length.
To determine what length of towel bar you will be needing, either directly measure the length of your current towel bar (this measurement should not include the towel bar brackets), or if old towel bar is unavailable, measure from outside edge to outside edge of metal framing and subtract 1-3/4” inch.
Part# 816
Towel Bar for frameless Crystal Series sliding doors.
For a custom length please select "Custom Length" in the drop down menu, then click add to cart to enter the custom length.
To determine what length of towel bar you will be needing, either directly measure the length of your current towel bar (this measurement should not include the towel bar brackets), or if old towel bar is unavailable, measure from outside edge to outside edge of metal framing and subtract 1-3/4” inch.
Part# ETB18 - 18”, ETB24 - 24”
Single mount Euro style towel bar. Available in 18” and 24” sizes.
Available in Polished Chrome, Platinum, Oil Rubbed Bronze, and Brushed Nickel.
Towel Bar Acrylic and Accent Piece Set includes:
4 accent pieces (158)
4 clear acrylic towel bar brackets (138)
2 clear acrylic stops (136)
2 Splendor stickers (137)
2 7/8” truss head screws (#117)
2 1-1/8” flat head screws (#118)
Accents are available in Silver, Gold, Dark Bronze, Platinum, and Brushed Nickel.
Metal Towel Bar Bracket Set includes:
4 metal towel bar brackets (128)
2 metal stops (126)
2 Splendor stickers (137)
2 7/8” truss head screws (#117)
2 1-1/8” flat head screws (#118)
Bracket sets are available in Silver, Gold, Dark Bronze, Platinum, and Brushed Nickel.
Hardware Bags and Components
Hardware set includes:
2 bumpers (131)
1 bottom guide (150)
6 wall anchors (113) and 6 SMS screws (#110)
2 flat head screws (#118)
4 rollers (130)
4 hex head screws (#116)
2 clear acrylic stops (136)
4 clear acrylic towel bar brackets (138)
2 3/4" SMS screws (#115)
4 accent pieces in a choice of 5 different finishes (158)
2 Splendor stickers (137)
2 truss head screws (#117)
2 self tap screws (#119)

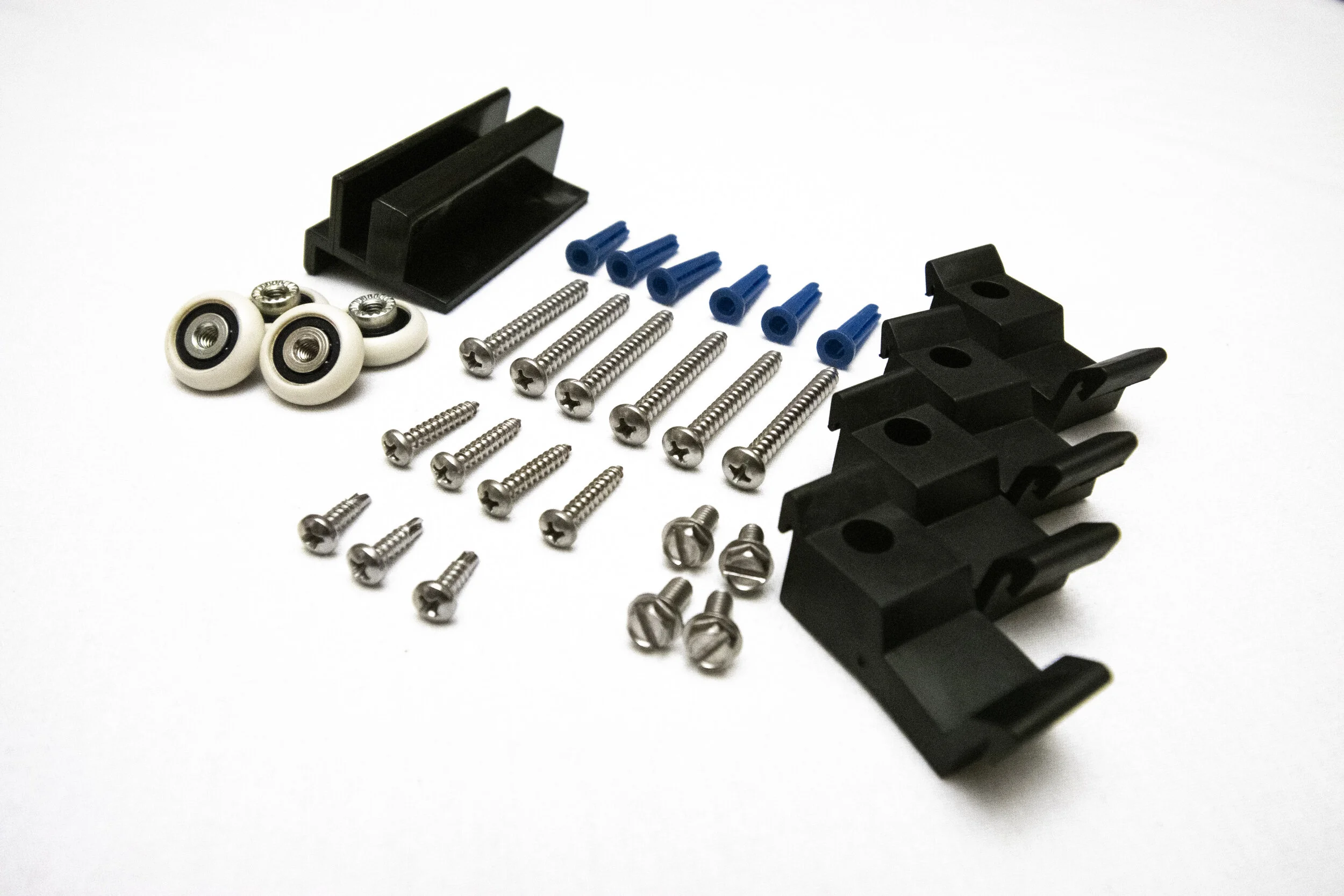

Hardware set includes:
1 Bottom Guide (152)
4 Roller Bearing (133)
4 Vinyl Bumper Guide (131)
4 #6 x 3/4" SMS Screw for Bumpers (#115)
4 #8 - 32x3/8" MS Hex Head (#116)
6 wall anchors (113) and 6 SMS screws (#110)
4 #6 x 1/2" SMS header screws (#119)
Part# Bumper 131, Screws 115
Standard bumpers fit Deluxe, Crystal, Euro, and Premier units. For Elite units please click here.
Bumpers guide sliding glass panels and guard against impact damage. Comes with 4 screws and 4 bumpers.
Our Standard Vinyl Bumpers fit inside a 1-3/8” side jamb.
Part# Bumper 185, Screws 115
Elite bumpers fit 3/8” glass on framed and semi-framed Elite units. Bumpers protect sliding glass panels and guard against impact damage. Comes with 4 screws and 4 Elite bumpers.
Our Elite Vinyl Bumpers fit inside a 1-5/8” side jamb.
Part# Bumper 140, Screws 115
Euro and Crystal bumpers fit 3/16” and 1/4” glass on Semi Frameless Euro and Crystal Series Sliders units. Bumpers protect sliding glass panels and guard against impact damage. Comes with 4 screws and 4 Elite bumpers.
Our Euro and Crystal Vinyl Bumpers fit inside a 1-3/8” side jamb.
Part# Bumper 151, Screws 119
Crystal bottom track guide allows panels to bypass and caters to 3/16" glass thickness
Comes with 1 screw and 1 Crystal series Bottom Track Guide.
Part# Bumper 153, Screws 119
Elite bottom track guide allows panels to bypass and caters to 3/8" glass thickness.
Comes with 1 screw and 1 Elite series Bottom Track Guide.
Part# Guide 152, Screws 119
Euro bottom track guide allows panels to bypass and caters to 1/4" glass thickness.
Comes with 1 screw and 1 Euro series Bottom Track Guide.
Part# Guide 150, screw 119
Premier and Deluxe track guide allows panels to bypass and caters to our framed style enclosures.
Comes with 1 screw and 1 Premier and Deluxe series Bottom Track Guide.
Slider Rollers
Part# Roller 133, Screw 116
Comes with 4 Rollers and 4 Hex Head Screws.
Heavy-duty rollers for 3/8” glass. Used in Elite Series Sliders.
Part# Roller 130, Screw 116
Comes with 4 Rollers and 4 Hex Head Screws.
Standard glass slider rollers used on Premier, Deluxe, and Crystal Slider Series.
Part# Roller 132, Screw 116
Comes with 4 Rollers and 4 Hex Head Screws.
Rollers for 1/4” glass. Used in Euro Series Sliders.
Handles and Holders
Part# Handle 260, Magnet 180
Handle for frameless shower enclosures. Comes with a set of magnets and a vinyl insert for the handle.
Available in Silver, Gold, Platinum, Dark Bronze, and Brushed Nickel.
Part# Holder 262, Magnet 180
Magnet and magnet holder that clamps onto glass for D-Pull handle option. Comes with a set of magnets and a vinyl insert for the magnet holder.
Part# VM-6
Length: 72”
Flexible magnetic strip used in Premier and Deluxe Series framed units.
Comes with 2 magnetic strips each 72” in length.
Part# EH6X6 - 6”, EH8X8 - 8”
Back to back Euro style D-pull handle. Available in 6” and 8” sizes.
Available in Polished Chrome, Gold, Platinum, Oil Rubbed Bronze, and Brushed Nickel.
Part# MH6X6 - 6”, MH8X8 - 8”
Back to back mitered D-pull handle. Available in 6” and 8” sizes.
Available in Polished Chrome, Oil Rubbed Bronze, and Brushed Nickel.
Part# SH6X6 - 6”, SH8X8 - 8”
Back to back square D-pull handle. Available in 6” and 8” sizes.
Available in Polished Chrome, Oil Rubbed Bronze, and Brushed Nickel.
Part# PK20
Single sided knob handle.for 1/2” glass.
Available in Polished Chrome, Oil Rubbed Bronze, and Brushed Nickel.
Part# PK30
Single mount knob handle with bumper sleeve for 1/2 glass.
Available in Polished Chrome, Oil Rubbed Bronze, and Brushed Nickel.
Part# PK220
Back to back through glass knob handle for 1/2 glass.
Available in Polished Chrome, Oil Rubbed Bronze, and Brushed Nickel.
Part# PK330
Back to back through glass knob handle with bumper sleeve for 1/2 glass.
Available in Polished Chrome, Oil Rubbed Bronze, and Brushed Nickel.
Glass Protection
Created as a more compact version of Diamon Fusion’s Consumer Maintenance Kit, the Express Care Kit features the same value-added products, but for a smaller surface coverage. The all-in-one kit makes routine care for glass surfaces even easier and helps save money for surfaces that are badly damaged. It can be used on a wide range of glass surfaces (railings, showers, table tops, etc.) and is extremely user-friendly.
Includes:
4 Revitalizer NanoPax® (Each designed to treat up to approximately 14 square feet)
2 Restoration Powder Packets
1 Nylon Cleaning Puff
1 Scrubber Pad
1 Microfiber Towel
The Consumer Maintenance Kit is designed to keep your treated surfaces looking cleaner and newer.
Includes:
3 Restoration Powder NanoPax®
1 Revitalizer 500ml Bottle ( Each 500ml (16 oz.) bottle of Revitalizer will treat up to approximately 997 square feet.)
1 Nylon Cleaning Puff
1 Scrubber Pad
1 Microfiber Towel
Glass Rescue cleans and restores heavily stained surfaces - even if they've been stained over long periods of time. It is the strongest product available for restoring heavily stained surfaces. Examples include: lime scale, calcium deposits, soap scum, salt spray, and other contaminants.
Please be aware that Glass Rescue may stain surfaces such as, stucco, brick, concrete, etc. Before using Glass Rescue, you should either test for compatibility or protect areas with tape and plastic sheeting.
The DFI Glass Defender Kit is designed to restore and protect your glass surfaces.
Includes:
3 Restoration Powder NanoPax®
1 Clear-Fusion 59ml Bottle ( Each 59ml (2 oz.) bottle of Revitalizer will treat up to approximately 110 square feet.)
1 Scrubber Pad
1 Microfiber Towel


Part# VM-46/47
Length: 84”
Sturdy polycarbonate snap on strike and door jamb with flexible vinyl insert for 3/8” inline glass to glass door and panel applications. Reduces water leakage between the door and glass panel.
Comes with both strike jamb and vinyl insert.
